Monday, October 31, 2011

Chickens aren't just for shooting at.

For my birthday I picked up a new spotting scope in my birthday stocking, or was that under the birthday tree?  Either way, it is a nice piece of glass that picks those .45 holes out at 200 yards no problem and should be good much further.  600 yards might be a stretch, but the range I normally shoot at has target markers, so I should be fine either way.  With the new scope comes the understanding that my old camera tripod is just not up to snuff.  It is wiggly, doesn't adjust smoothly, and it always seems like there's a leg in the way.  It is time for a project.

I've been wanting one of those "single pole" scope stands.  Most of them seem pretty simple, with just a base, pole, and adjustable slider for the scope.  I can buy one for $250, but being recently unemployed, again, I opt for "time cost" over "money cost."  As it turns out I have a plate of steel, a pole, and some shaft collars sitting in my metal knick knack pile.  With a little bandsaw time and some drill and tap work, here is the result






I chose the chicken because it is the most nefarious of the steel animals, since we always shoot it offhand.  The plate is only 1/4" thick.  It would of been nicer with 3/8.  I'll probably end up throwing a couple of sandbags on it if it gets windy.  If you can find one as a castoff from your range, so much the better.  One nice feature to note is the short threaded rod pushing on the body of the scope.  I'm always finding the "loosen, move, tighten" setups of most stands and tripods to be futzy.  The threaded rod lets me dial in elevation nice and smoothly.  I don't have anything like this for azimuth (windage), but I'll work something up if it seems like I need it.


As you can see, I've left an Allen wrench here and there.  I'll swap the screws out for knurled thumbscrews when I get a chance.

It is currently set up for concrete, with the 3 leveling screws.  I'll probably make some spikes, shaped like big vicious acorn nuts, to put on the screws when used in grass or gravel.

Anyway, right now, the total cost is 0$, which suits me fine.


Current $per shot = $2.89
Current % shipping costs = 8.88%

Sunday, October 9, 2011

Keeping on an even keel.

At my last competetive shoot, I noticed a phenomenon that has become more pronounced lately.  My groups are becoming wider than they are tall.  There can be any number of reasons for this, but the basic mechanism is that my groupings have become shorter by a bit, but unhanged in width.  One potential reason is that since I am shooting at silhouette shapes that are longer than they are tall, my sight picture is imprecise from side to side.   Shown here is a target that would certainly have been a 10 if I had a bit of horizontal control.



While this is a pretty good target for me, I must admit that most of the people I shoot against have groups about 1/2 the size.  I can't do much about my target shape, but I considered trying something the fine Black Powder Cartridge Rifle vendors use to tempt me out of my money.  That thing is a bubble level.

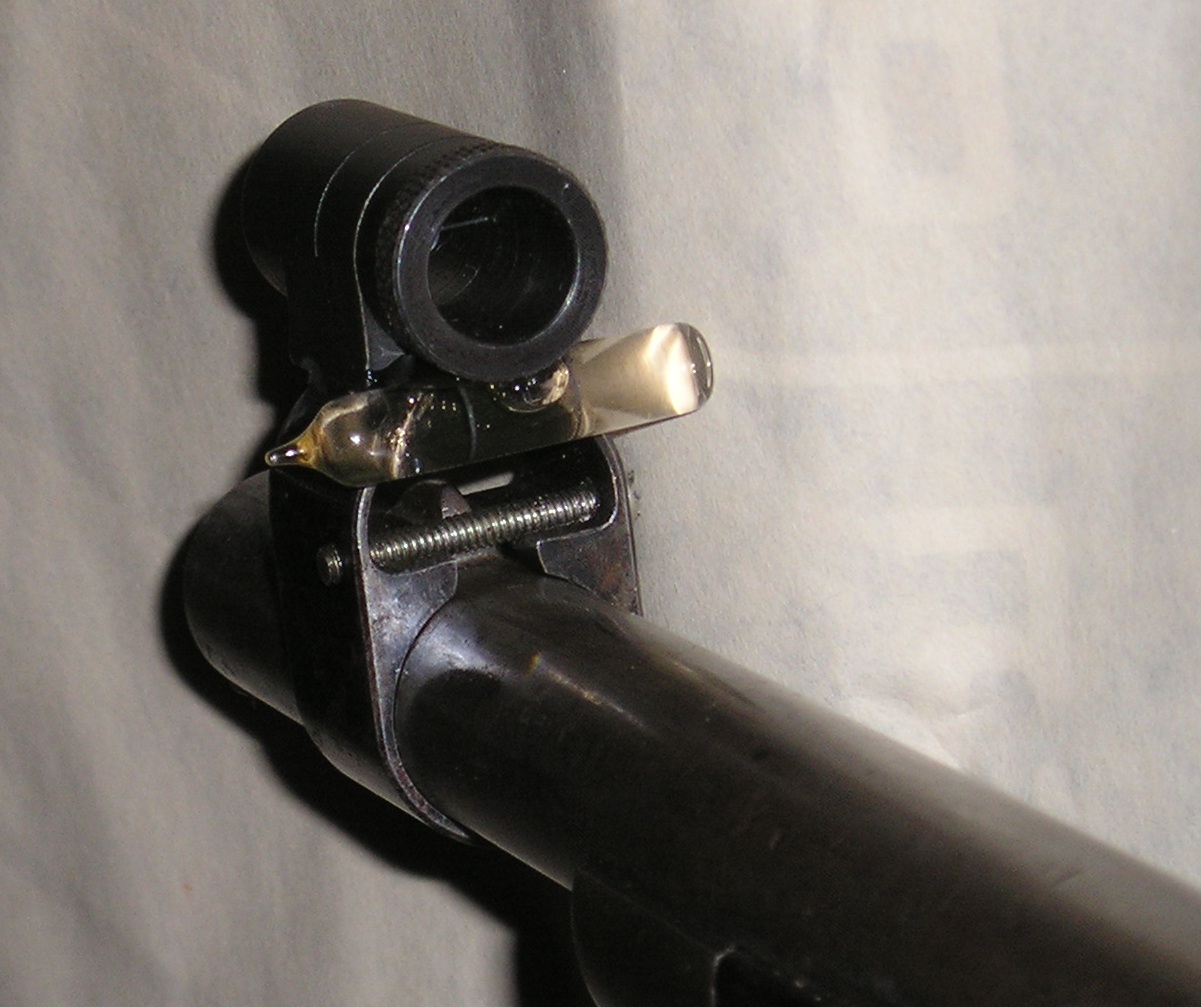

Bubble levels aren't particularly expensive, but I'm not going to find one as a simple add on to my cobbed together front sight, so I decided to make a home "proof of concept" version before I went to the effort of mounting the real thing.  I forsed the glass out of a cheap level and glued it in place with Shoe Goo.  Shoe Goo used to be the best adhesive known to man when it was clear.  Now it has been reformulated to black and is just OK, but it worked fine for this application.




My first observation was that with clear liquid, I wasn't going to be able to see the witness marks at all.  As it turned out, it was quite easy to gauge level using the cross hair that holds the center aperture.  The next task was to get an estimate of how much angular variation I was getting.  I set the rifle up on a stand and measured the cant from dead center to the bubble fully off to the side (edge of bubble on the centerline)  That came right to 4 degrees.  Next, I got on one of the free web-based ballistic calculators, and with a few reasoned estimates for muzzle velocity and ballistic coefficient, I
had the bullet drop at a number of ranges for my gun.  I zeroed the inputs so it reads as if the gun is pointed perfectly horizontal at the center of the target.

The numbers go like this:


Range Drop Offset at 4 degree cant
0 0 0.00
50 2.9 0.20
100 11.5 0.80
150 26.33 1.84
200 47.9 3.34
250 76.71 5.35
300 113.24 7.90
350 157.93 11.02
400 211.22 14.73
450 273.51 19.08
500 345.18 24.08
550 426.6 29.76
600 518.12 36.14


The offset numbers are simply a calculation of the length of the opposite (sine) leg of a triangle with the bullet drop as the hypotenuse.
As you can see, at 200 yards, a 4 degree cant amounts to 3.34" offset.  I figure my normal variation is about half this, but it could be in both directions, so it adds up to some real numbers.

The next step was to do some physical testing.  Off to the range.  I shot 2 groups of 10 rounds each at an identical round target and each with the same sight setting.  The first group was shot with the bubble as centered as I could make it.  The second was with the bubble off to the side the 4 degrees mentioned previously.  When all was said, done, and measured, the difference in the two groups was 4.28" in the horizontal direction.  This is a bit more than expected, but certainly in the ballpark.  They were almost identical in the vertical direction, which is to be expected.

One additional positive in all this is it gives a stable way to adjust for wind variation.  The traditional method for wind doping is to set up the sights for whatever the "standard" wind conditions are that day, and then just wait for the wind to match those conditions and take your shot.  On a blustery day, those conditions may not come along often enough and some sight adjustment and guesswork occurs.  By knowing how much offset I get from a certain cant, I can quickly and accurately "lean in" some Kentucky Windage and not have any sight fiddling involved.  It allows me to leave my sight picture unchanged and I always have a perfect "zero shot" when wind returns to normal.
